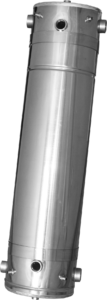

Connect – heat exchanger

Combine devices working in open flow circuit with installation working in closed flow circuit and devices, in which medium is a water and glycol

  • separates the heating agents
  • command the temperature layers
  • replaces hydraulic coupling
  • replaces board or pipe exchanger
  • replaces desilter

Separates air / deairs installation

Category:

Description

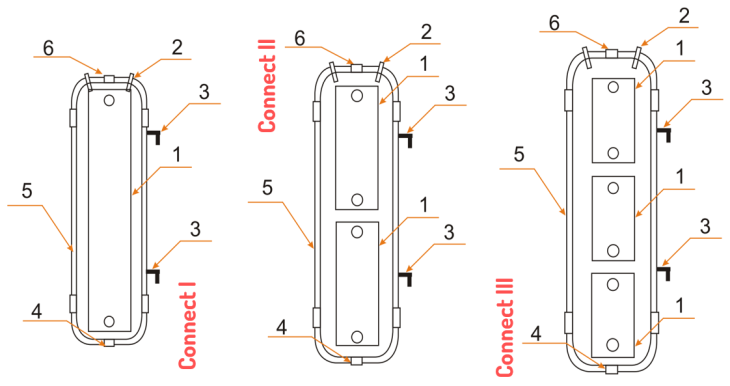

Connect I, Connect II, Connect III with one, two and three exchanger units

CONNECT I: 25 kW, 40 kW, 55 kW
dedicated for source flows  1,5 m3/h, 2,5 m3/h, 3,0 m3/h

CONNECT II: 25×25 kW
dedicated for source flows 2×1,5 m3/h

CONNECT III: 25×25×25 kW
dedicated for source flows 3×1,5 m3/h

  1. Exchanger unit made from stainless indented steel
  2. Mounting stub pipe of automatic air vent
  3. Factory made mounted handles – simply montage
  4. Blow down stub pipe – emptying i desilting
  5. Exchanger jacket with automatic deair system
  6. Montage temperature sensor – unit regulation
